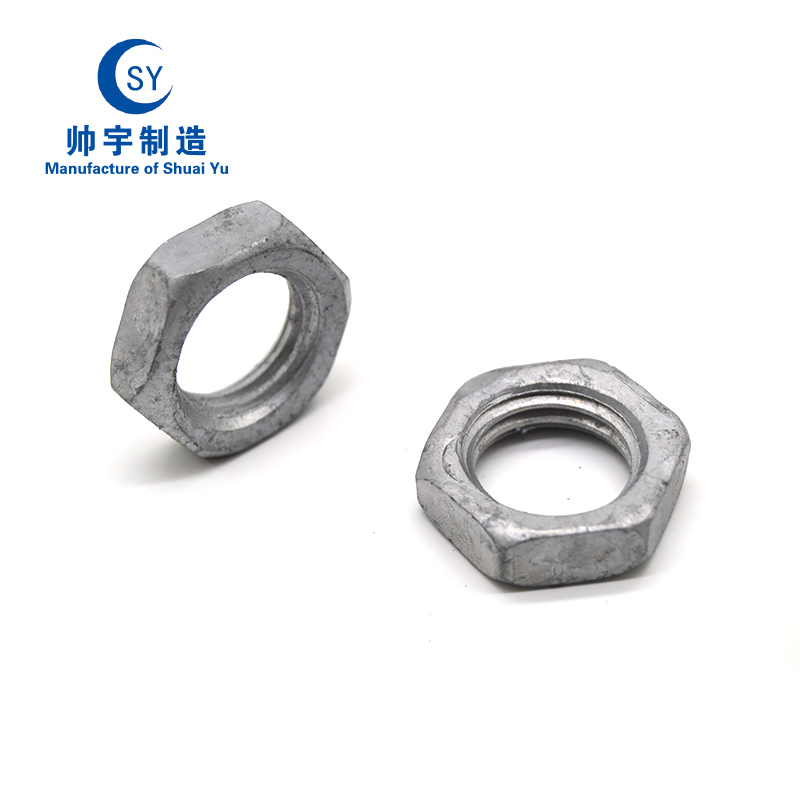

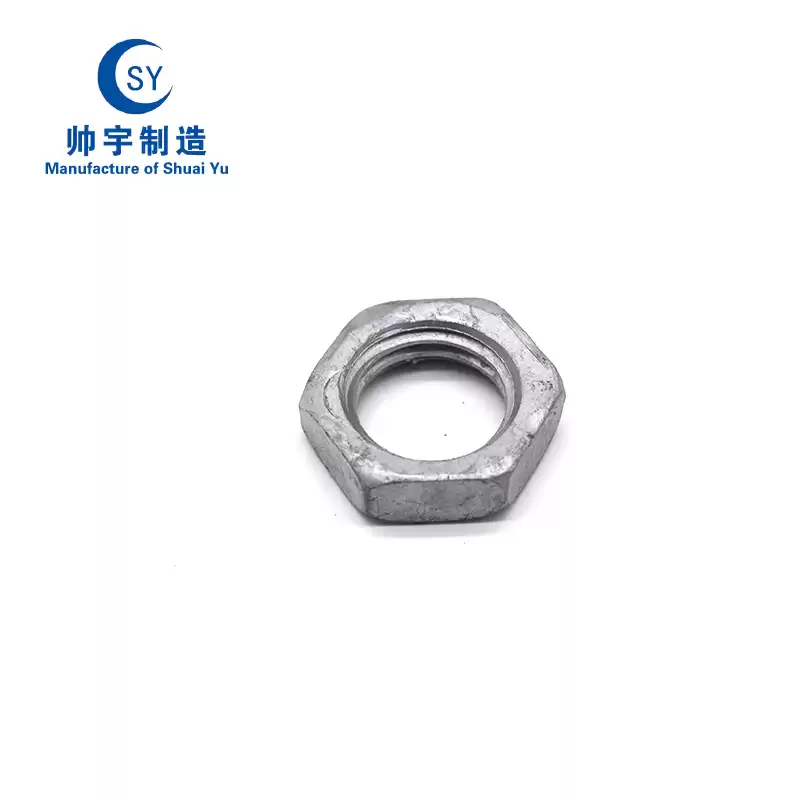

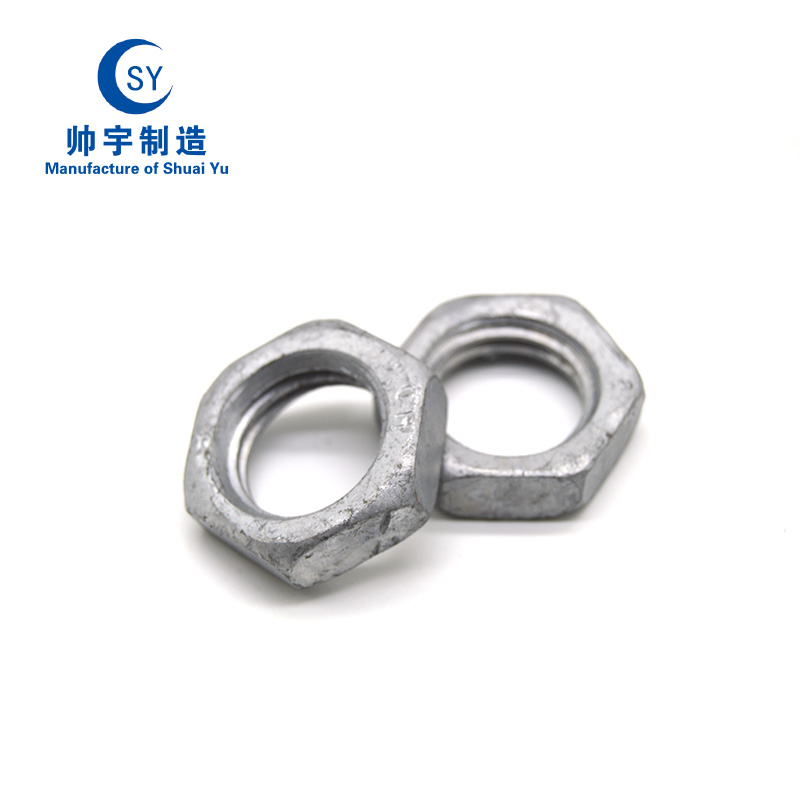

hexagon thin nut

Short Description:

thin nuts, Executive standard: DL/T 284-2012

The tensile strength and design program of the anchors used in the transmission towers are designed by the design institutes according to the geology, wind pressure, self-weight, transmission line grade, etc. The construction drawings will identify the tensile strength, type and nut configuration of the connecting bolts at each position (nuts include ordinary nuts, anti-theft nuts, thin nuts, buckle nuts, self-locking nuts, etc.) in detail. Our products would be manufactured strictly according to the construction drawings of the design institutes.

We can custom-make any length or special need your project requires. Contact us by email or fill out the form below and one of our sales members will contact you with more information.


Detail

Thin nut size

unit:mm

thread specification M10 M12 M16 M18 M20 M22 M24 M27 M30 M33
P 1.5 1.75 2 2.5 2.5 2.5 3 3 3.5 3.5

DL/T 284—2021

thread specification M10 M12 M16 M18 M20 M22 M24 M27 M30 M33
dw.min 14.5 16.5 22 24.9 27.7 31.4 33.3 38 42.8 46.6
emin 17.59 19.85 26.17 29.56 32.95 37.29 39.55 45.2 50.85 55.37
m max 5 6 8 9 10 11 12 13.5 15 16.5
min 4.7 5.7 7.42 8.42 9.10 9.9 10.9 12.4 13.9 154
Mw,min 3.8 4.6 5.9 6.7 7.3 7.9 8.7 9.9 11.1 12.3
S nominal=max 16.00 18.00 24.00 27.00 30.00 34 36 41 46 50
min 15.57 17.57 23.16 26.16 29.16 33 35 40 45 49
thread specification M36 M39 M42 M45 M48 M52 M56 M60 M64
P 4 4 4.5 4.5 5 5 5.5 5.5 6.0
dw.min 51.1 55.9 60 64.7 69.5 74.2 78.7 83.4 88.2
Emin 60.79 66.44 71.3 76.95 82.6 88.25 93.56 9,921 104.86
m max 18 19.5 21 22.5 24 26 28 30 32
min 16.9 18.2 19.7 21.2 22.7 24.7 26.7 28.7 30.4
Mwmin 13.5 14.6 15.8 17 18.2 19.8 21.4 23 24.3
S nominal=max 55.0 60.0 65.0 70.0 75.0 80.0 85.0 90.0 95.0
min 53.8 58.8 63.1 68.1 73.1 78.1 82.8 87.8 92.8
