Expansion bolt

Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.
Loading...
  • Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.
  • Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.
  • Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.
  • Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.
  • Expansion Bolt - Shuaiyu Fastener Manufacturing Co., LTD.

Short Description:

Sleeve anchors are an anchoring solution made from steel and stainless steel for cracked and non-cracked concrete and in applications exposed to seismic loads. The low level of energy required to hammer in the fixings allows for a force-saving mounting process. In addition, the optimum interaction of the screw shank and anchor sleeve enables a high shear load resistance. The drill hole is made, the anchor is hammered in, and the screw is tightened with a controlled torque. The expansion sleeve expands against the wall of the drill hole. The anchors use friction locking to safely introduce the loads into the base material.


Detail

THREE-PIECE AND FOUR-PIECE GECKO

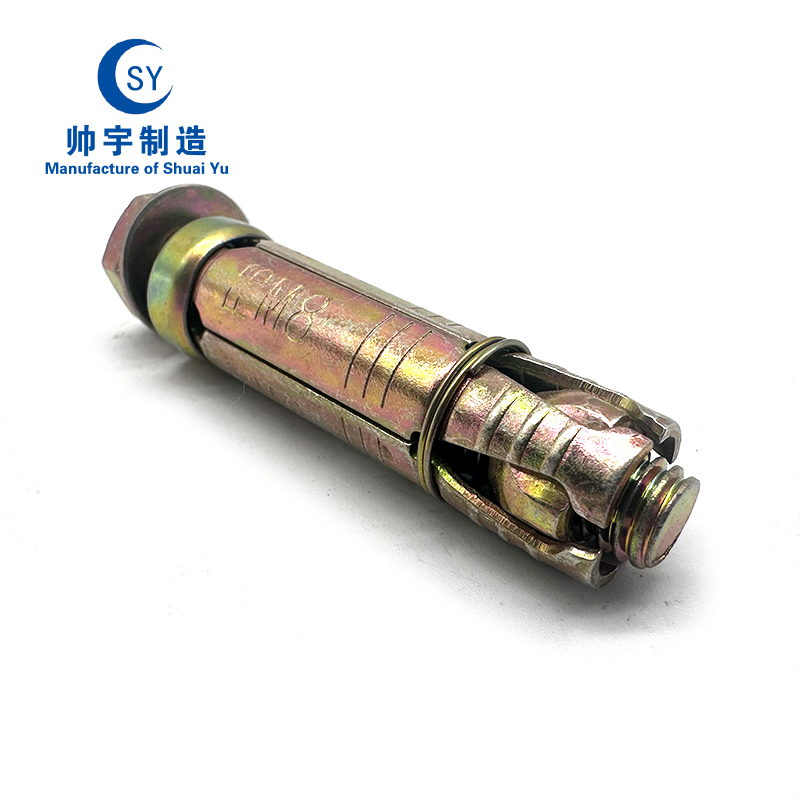

item 3pcs/4pcs shield expansion anchor bolt with yellow zinc plated
System of Measurement Metric
Place of Origin China
Brand Name shuaiyu
Model Number M6-M20
Material Carbon steel
Diameter M6, M8, M10, M12, M14, M16, M20
Standard DIN,,GB
Surface treatment Zinc plated
Certificate ISO9001:2008
Grade 4.8/ 6.8/  Ect
Packing Carton+pallet
MOQ 1 Pcs
Port Tianjin,Qingdao Port
Payment Terms T/T,FOB,CIF,DAP
Sample Available
